ORiV® Sense Specifications
Machine Health Monitoring
Vibration
Acoustic

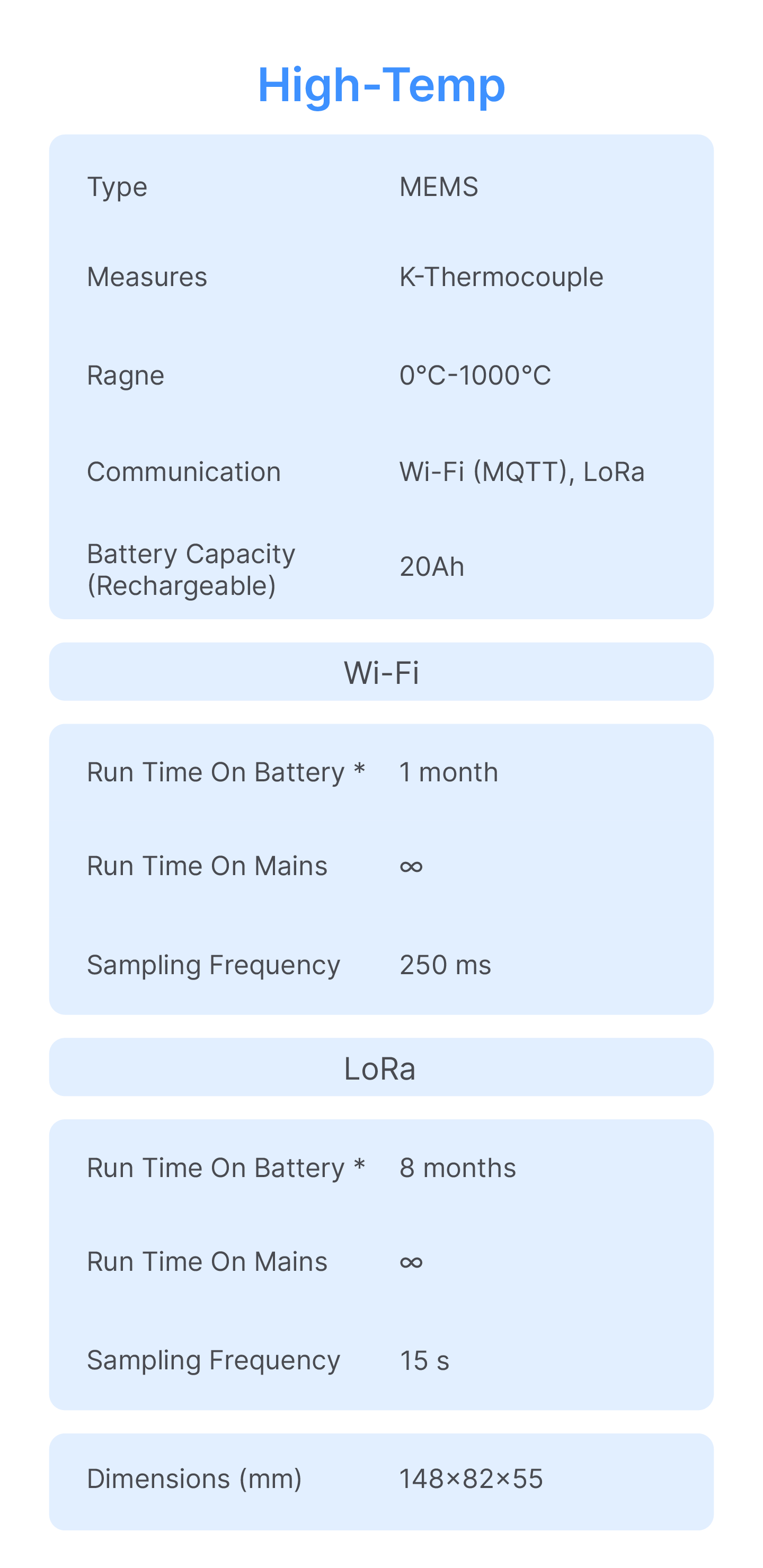

High-Temp

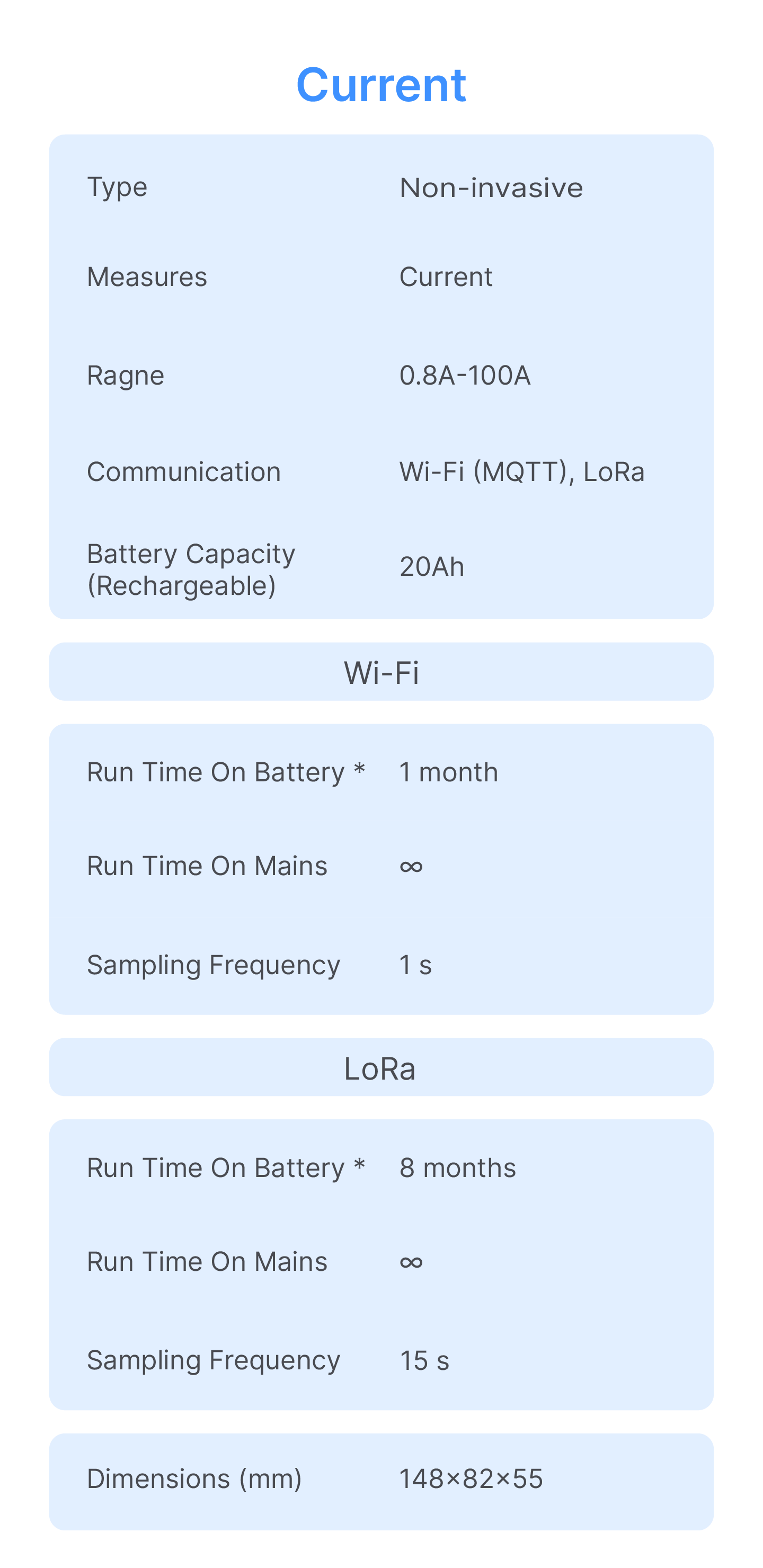

Current
Type
MEMS
MEMS
K-Thermocouple
Non-invasive
Measures
Acceleration
Decibel level
Temperature
Current
Range
±16g
30dB-130dB
0°C-1000°C
0.8A-100A
Communication
Wi-Fi (MQTT), LoRa
Battery Capacity
(Rechargeable)
10Ah
10Ah
20Ah
20Ah
Wi-Fi
Run Time On
Battery *
1 month
1 month
1 month
1 month
Run Time On Mains
∞
∞
∞
∞
Sampling Frequency
10 ms
125 ms
250 ms
1 s
LoRa
Run Time On
Battery *
8 months
8 months
8 months
8 months
Run Time On Mains
∞
∞
∞
∞
Sampling Frequency
1 s
1 s
15 s
15 s
Dimensions (mm)
95×65×50
95×65×50
148×82×55
148×82×55
* The maximum predicted runtime has been considered under ideal working conditions and the highest sampling frequency.
Software
Platforms

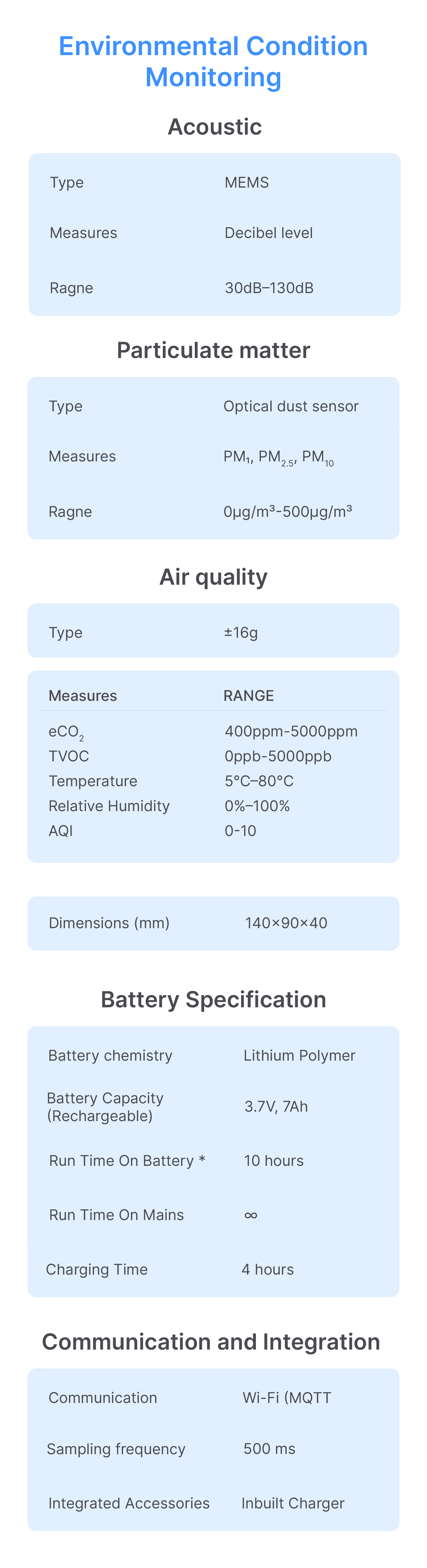

Environmental Condition Monitoring
Sensors
Type
Measures
Range
Acoustic
MEMS
Decibel level
30dB–130dB
Particulate matter
Optical dust sensor
PM1, PM2.5, PM10
0μg/m³-500μg/m³
Air quality
±16g
eCO2
TVOC
Temperature
Relative Humidity
AQI
400ppm-5000ppm
0ppb-5000ppb
5°C–80°C
0%–100%
0-10
Dimensions (mm)
140×90×40
Battery Specification
Battery chemistry
Lithium Polymer
Battery Capacity
(Rechargeable)
3.7V, 7Ah
Run Time On Battery *
10 hours
Run Time On Mains
∞
Charging Time
4 hours
Communication and Integration
Communication
Wi-Fi (MQTT)
Sampling frequency
500 ms
Integrated Accessories
Inbuilt Charger
* The maximum predicted runtime has been considered under ideal working conditions and the highest sampling frequency.
Software Platforms
ORiV Industrial
Sensors
Min Value
Max Value
Vibration Sensor
0 mm/s
25 mm/s
Current Sensor
0 A
100 A
CO Flow Sensor
2 l/min
100 l/min
Compressed Air Flow Sensor
1 l/min
50 l/min
Inlet Water Temperature
10°C
70°C
Outlet Water Temperature
10°C
70°C
System Max Current
-
10 A
System voltage (DC)
24V
26V
Software Platforms
